EXCAR yellow 14 Seater electric sightseeing bus tour bus 72V new electric bus
Feather of electric cart:
1 Type sofa chair, comfortable
2 Efficient special driving axle
3 FR/disc RR/drum, safey
Performance
| Item | Description |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red |
| Green | Dark green | Yellow |
| Purple | Champagne | Black |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color |
| Seat & Roof colour | Black | Beige | White |

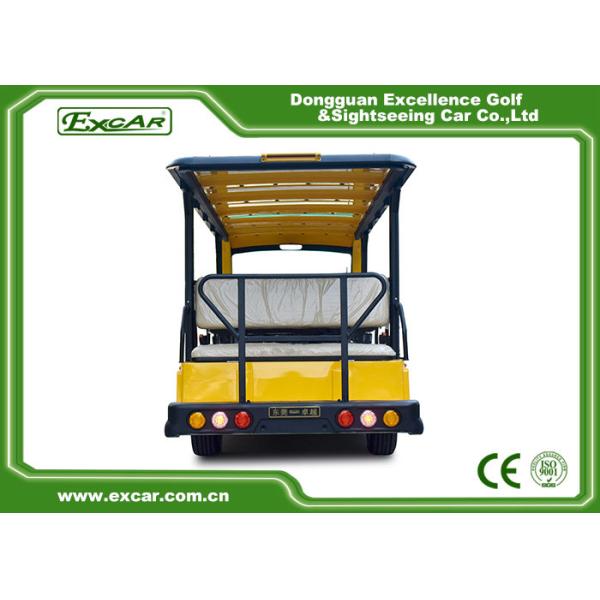

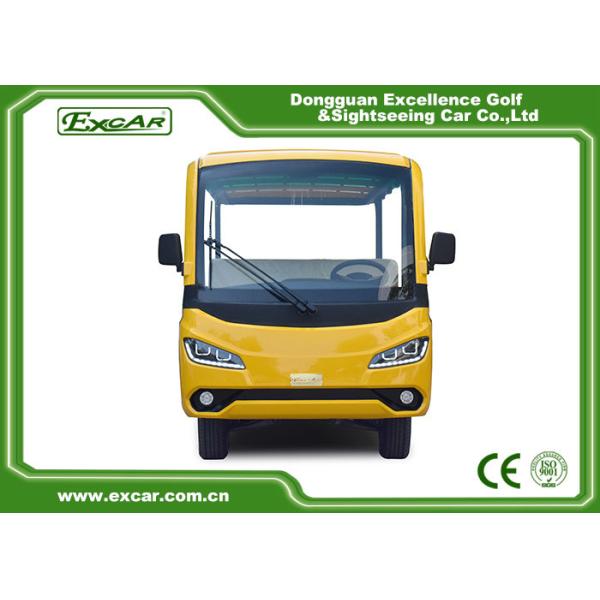

Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
